Comparing FKM and NBR: Performance and Application Differences

Performance Differences Between Fluororubber (FKM) VS Nitrile Rubber (NBR)

Introduction:

In modern industries, both Fluoroelastomer (FKM) and Nitrile Rubber (NBR) are widely used. NBR is often seen as an economical “jack-of-all-trades” due to its cost-effectiveness and versatility. In contrast, FKM stands out for its high-performance attributes, making it the material of choice for demanding and extreme conditions.

1. Chemical Composition and Structural Differences

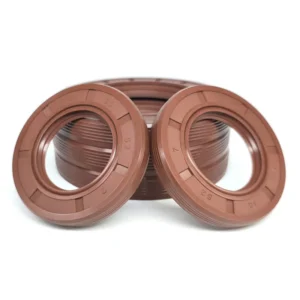

Fluoroelastomer (FKM): FKM is a specialty synthetic rubber with a high fluorine content, typically ranging from 66% to 70%. Its unique molecular structure, primarily composed of vinylidene fluoride and hexafluoropropylene, forms exceptionally strong carbon-fluorine bonds. These bonds provide FKM with excellent resistance to high temperatures, oils, and aggressive chemicals.

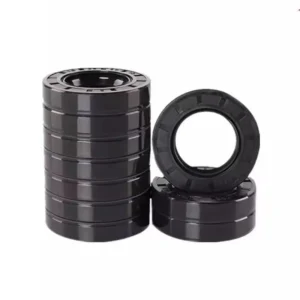

Nitrile Rubber (NBR): NBR is produced by copolymerizing acrylonitrile (ACN) and butadiene in varying ratios. The ACN content generally falls between 18% and 50%, significantly influencing its properties. Higher ACN levels improve oil resistance but reduce low-temperature flexibility, while lower ACN levels enhance low-temperature performance at the expense of some oil resistance.

2. Cost Comparison: FKM vs. NBR

Price Gap: According to DRO Rubber’s procurement data, FKM is approximately five times more expensive than NBR. This cost difference is mainly due to higher raw material costs, more complex production processes, and longer manufacturing times.

Application Considerations: NBR’s lower cost makes it suitable for mass production and general-purpose uses. Although FKM is more expensive, its value is evident in applications that require high temperature stability, chemical resistance, and superior durability.

3. Temperature Resistance and Durability

Temperature Ranges:

NBR: Suitable for temperatures ranging from approximately -30°C to 120°C.
FKM: Performs reliably in extreme conditions, from around -20°C up to 230°C.

Practical Examples: Industries like automotive, aerospace, and chemical processing often rely on FKM for its excellent heat resistance. In contrast, NBR is best suited for sealing scenarios with moderate temperature requirements.

4. High-Speed and Wear Resistance (Especially for Oil Seals)

Rotational Speed Requirements:

NBR: Ideal for operations below 1,000 RPM. Higher speeds generate frictional heat that can degrade NBR.
FKM: Standard grades (with 26% fluorine content) can handle up to about 5,000 RPM, while enhanced formulations may reach 30,000 RPM. DRO Rubber has achieved stable sealing at 25,000 RPM for manufacturers of soy milk machines.

Conclusion: For high-speed rotating shafts and demanding dynamic sealing, FKM is superior. NBR remains a cost-effective option for low-speed or static sealing applications.

Static Sealing Performance (Applicable to O-Rings):

In addition to dynamic sealing, O-rings serve a crucial role in static sealing applications across various industries. Below are the performance metrics for O-rings made from different materials:

Tensile Strength:
- NBR O-Rings: Typically possess tensile strengths ranging from 15-25 MPa, suitable for moderate stress environments.
- FKM O-Rings: Exhibit higher tensile strengths, usually between 20-35 MPa, allowing them to withstand greater mechanical stresses.
Pressure Resistance:
- NBR O-Rings: Suitable for applications with pressure ranges up to 0-15 MPa, meeting general industrial requirements.
- FKM O-Rings: Capable of withstanding pressures up to 20-30 MPa, ideal for high-pressure sealing needs.
High-Temperature Resistance:
- NBR O-Rings: Operate effectively within a temperature range of -30°C to 120°C, making them suitable for static sealing scenarios with minimal temperature fluctuations.
- FKM O-Rings: Expanded temperature resistance from -20°C to 230°C or higher, making them ideal for high-temperature static sealing applications such as chemical processing equipment and high-temperature hydraulic systems.
Chemical Resistance:
- NBR O-Rings: Offer good resistance to oils and non-polar solvents but have limited resistance to acids, bases, and ozone.
- FKM O-Rings: Provide exceptional resistance to a wide range of chemicals, including acids, bases, oils, and oxidizing agents, making them suitable for static sealing in highly corrosive environments.

The data above demonstrates that FKM materials offer superior performance metrics in static sealing applications, making them suitable for more demanding work environments. Conversely, NBR remains a cost-effective choice for standard static sealing needs with less stringent performance requirements.

5. Other Applications and Performance Characteristics

Chemical Resistance:

NBR: Good resistance to oils, fuels, and non-polar solvents, but less suitable against strong acids, bases, and ozone.
FKM: Exceptional resistance to a broad range of harsh chemicals, including acids, alkalis, oils, and oxidizing agents, making it ideal for highly corrosive environments.

Weathering and Aging: FKM outperforms NBR in resisting UV, ozone, and long-term aging, ensuring a longer lifespan outdoors. NBR, however, is prone to degradation if exposed to UV and ozone for extended periods.

Low-Temperature Flexibility: NBR maintains better flexibility at about -30°C. Standard FKM works down to around -20°C, but special FKM grades can be formulated for improved low-temperature performance if required.

6. Is NBR Better Than FKM?

There is no one-size-fits-all answer—it depends on the specific application.

NBR Advantages:

Better flexibility at lower temperatures (-30°C).
Significant cost benefits, making it more accessible for general uses.

FKM Advantages:

Superior resistance to high temperatures, chemicals, and wear.
Ideal for critical, high-performance, and extreme conditions.

Decision Factors: Material selection depends on the operational environment, including temperature range, chemical exposure, mechanical stress, and budget constraints. For standard applications, NBR may suffice. For demanding conditions, FKM is the preferred choice.

7. Mechanical Properties

Understanding the mechanical properties of FKM and NBR is crucial for selecting the right material for specific applications. This section covers aspects such as elongation at break, hardness, compression set, and tear resistance.

Elongation at Break:

NBR: Typically exhibits higher elongation at break (300-500%), indicating good flexibility and the ability to stretch without breaking.
FKM: Generally has lower elongation at break (200-400%) compared to NBR, but still maintains sufficient flexibility for most sealing applications.

Hardness:

NBR: Available in a wide range of hardness levels (Shore A 60-90), allowing customization based on application needs.
FKM: Also offers a broad hardness range (Shore A 60-90) but tends to maintain its hardness better under high-temperature conditions.

Compression Set:

NBR: Exhibits moderate compression set (20-40%), meaning it can recover its original shape after prolonged compression.
FKM: Typically has a lower compression set (10-30%), enhancing its performance in maintaining seals over extended periods and varying temperatures.

Tear Resistance:

NBR: Good tear resistance, making it suitable for dynamic applications where the material may experience continuous movement.
FKM: Excellent tear resistance, especially in harsh environments, ensuring the longevity and reliability of seals.

8. Physical Properties

Highlighting physical properties such as density and color provides additional insights into material selection, especially for applications where weight and aesthetics are important.

Density:

NBR: Generally has a higher density (~1.15 g/cm³), which can be a consideration in weight-sensitive applications.
FKM: Slightly lower density (~1.8 g/cm³), contributing to lighter seals without compromising performance.

Color:

NBR: Typically black or dark-colored, which can aid in visual inspections and leak detection.
FKM: Available in various colors, including black, white, and custom colors, offering flexibility for different application requirements.

9. Processing and Manufacturing Considerations

The ease of processing and manufacturing can influence the choice between FKM and NBR, especially in large-scale production environments.

Molding and Extrusion:

NBR: Easier to mold and extrude due to its versatile properties, resulting in shorter production cycles and lower manufacturing costs.
FKM: More challenging to process because of its higher viscosity and sensitivity to processing conditions, requiring specialized equipment and expertise.

Vulcanization:

NBR: Faster vulcanization times, allowing for increased production efficiency.
FKM: Requires longer vulcanization times and precise control over curing conditions to achieve optimal properties.

Cure Stability:

NBR: Generally offers good cure stability, reducing the risk of defects during production.
FKM: More sensitive to cure conditions, necessitating careful monitoring to prevent issues like incomplete curing or over-curing.

10. Environmental and Sustainability Considerations

In today’s environmentally conscious market, sustainability can be a deciding factor for material selection.

Recyclability:

NBR: Limited recyclability due to its cross-linked structure, but some recycling methods are available for specific applications.
FKM: Also has limited recyclability, with ongoing research into more sustainable production and recycling techniques.

Environmental Impact:

NBR: Production involves the use of acrylonitrile, which poses environmental and health risks if not managed properly.
FKM: The high fluorine content raises environmental concerns, particularly regarding the release of perfluorinated compounds (PFCs) during production and disposal.

Regulatory Compliance:

NBR and FKM: Both materials must comply with environmental regulations related to VOC emissions, hazardous substances, and waste management. Staying updated with regulations is essential for manufacturers and end-users.

11. Industry-Specific Applications

Delving deeper into how FKM and NBR are utilized across various industries provides practical insights.

Automotive:

NBR: Commonly used in fuel system components, hoses, and gaskets due to its good oil resistance and flexibility.
FKM: Utilized in high-performance engine seals, turbocharger seals, and other components exposed to extreme temperatures and aggressive chemicals.

Aerospace:

NBR: Employed in non-critical seals and gaskets where cost-effectiveness is prioritized.
FKM: Preferred for critical sealing applications in engines and hydraulic systems, ensuring reliability under extreme conditions.

Chemical Processing:

NBR: Suitable for handling a variety of non-polar solvents and oils.
FKM: Essential for containing highly corrosive chemicals, acids, and solvents, providing superior chemical resistance.

Food and Beverage:

NBR: Used in equipment seals where contact with oils and fats is common.
FKM: Applied in areas requiring high-temperature sterilization and resistance to harsh cleaning agents.

Medical Devices:

NBR: Utilized in flexible tubing and seals where biocompatibility is required.
FKM: Used in components exposed to high temperatures during sterilization processes.

12. Regulatory and Certification Standards

Compliance with industry standards and certifications ensures that the materials meet the required quality and safety benchmarks.

NBR:

Standards: Complies with ASTM D2000, ISO 37, and SAE J514 standards for various mechanical and chemical properties.
Certifications: Often required to meet FDA regulations for food-grade applications or ISO certifications for quality management.

FKM:

Standards: Adheres to ASTM D1418, ISO 37, and other relevant standards for high-performance applications.
Certifications: Must comply with stringent aerospace and automotive certifications, including SAE and ISO standards, ensuring suitability for critical applications.

13. Case Studies and Real-World Applications

Incorporating case studies illustrates the practical benefits and challenges of using FKM and NBR in real-world scenarios.

Case Study 1: Automotive Fuel Systems

Challenge: Need for seals that can withstand exposure to various fuels and high temperatures.
Solution: NBR used for general fuel hoses due to cost-effectiveness, while FKM was selected for critical seals in the fuel injection system to ensure reliability and longevity.

Case Study 2: Chemical Processing Plant

Challenge: Sealing components exposed to highly corrosive acids and elevated temperatures.
Solution: FKM O-rings implemented in reactor vessels and piping systems to prevent leaks and ensure safe operation, outperforming NBR in chemical resistance.

Case Study 3: High-Speed Machinery

Challenge: Dynamic sealing in machinery operating at speeds exceeding 20,000 RPM.
Solution: FKM oil seals were employed to maintain effective sealing under high rotational speeds and thermal stress, ensuring consistent performance and reducing maintenance needs.

14. Life Cycle Cost Analysis

Evaluating the total cost of ownership, including initial costs, maintenance, and lifespan, can influence material choice beyond just the upfront price.

NBR:

Initial Cost: Lower, making it attractive for budget-sensitive projects.
Maintenance: May require more frequent replacements in harsh environments, potentially increasing long-term costs.
Lifespan: Shorter lifespan in high-stress applications, impacting overall cost-effectiveness.

FKM:

Initial Cost: Higher, reflecting its superior performance characteristics.
Maintenance: Less frequent replacements due to enhanced durability, reducing maintenance costs.
Lifespan: Longer lifespan in demanding applications, offering better long-term value despite higher initial investment.

15. Future Trends and Innovations

Discussing emerging trends and advancements provides insights into the evolving landscape of elastomer materials.

Material Enhancements:

NBR: Development of bio-based NBR variants to improve sustainability and reduce environmental impact.
FKM: Innovations in low-fluorine FKM formulations to address environmental concerns while maintaining performance.

Manufacturing Advancements:

3D Printing: Exploring additive manufacturing techniques for customized seal designs using FKM and NBR materials.
Automation: Increased automation in production processes to enhance consistency and reduce manufacturing costs for both materials.

Sustainability Initiatives:

Recycling Programs: Implementation of recycling programs and circular economy practices to improve the sustainability of FKM and NBR products.
Green Chemistry: Adoption of green chemistry principles in the synthesis of FKM and NBR to minimize environmental footprint.

Conclusion

FKM and NBR each excel in their own domains. NBR stands out for its affordability and versatility, while FKM dominates in extreme, high-performance scenarios. Selecting the right material depends entirely on the application’s needs. DRO Rubber can provide high-quality FKM and NBR products tailored to your specific requirements.
